Tractor, Compact MFWD w/Loader and Hoe Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU TRA-775
Hourly $30
Minimum Charge $180
4 Hours $192
Daily $240
Weekend* $312
Week $960
Month $2,880

Includes Trailer

Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit at $30.00 per hour.

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

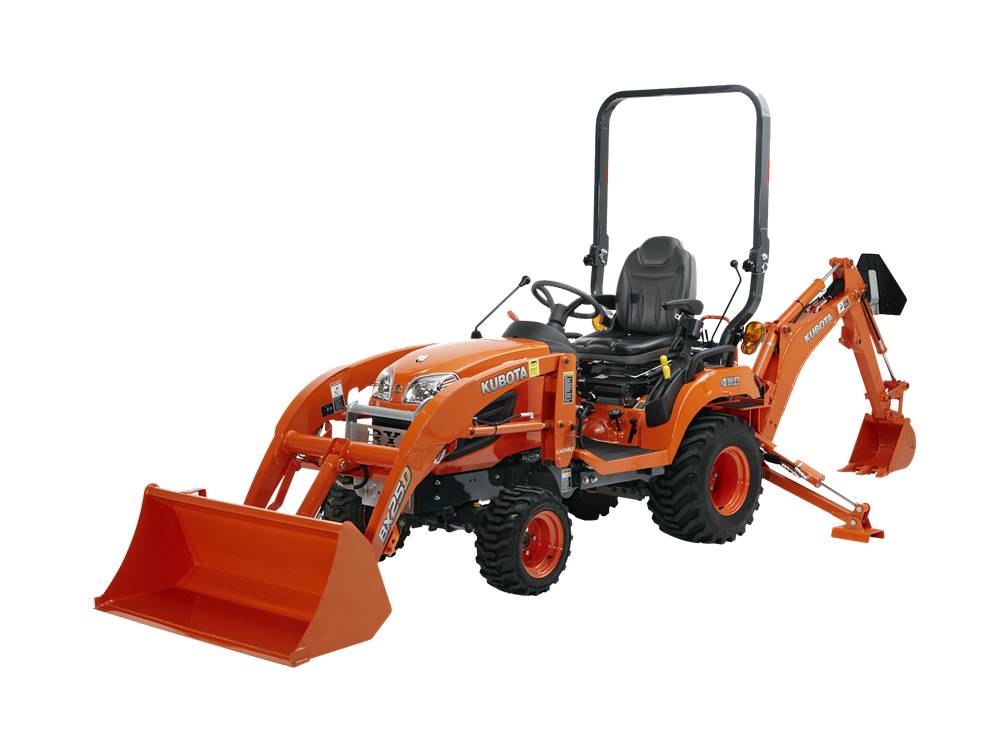

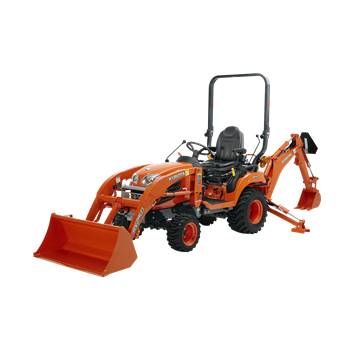

Kubota BX25D

  • With a purpose-built, spacious, comfortable operator station, the BX25D is designed for serious digging. The backhoe itself features a curved boom, ample legroom, 20° angle of departure and wide sight lines. It’s the perfect tool for everyday tasks as well as tough jobs.
  • Hitch 2-5/16" Ball
  • 7 pt RV hook-up only
  • Front bucket is 48" wide
  • Rear hoe bucket is 12" wide
  • Diesel fuel only
  • Capacity of 26 litres of fuel

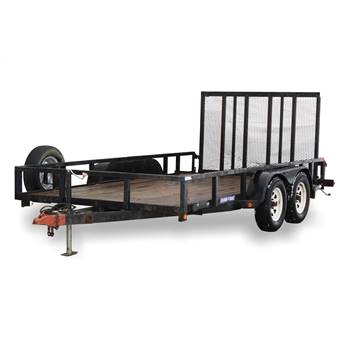

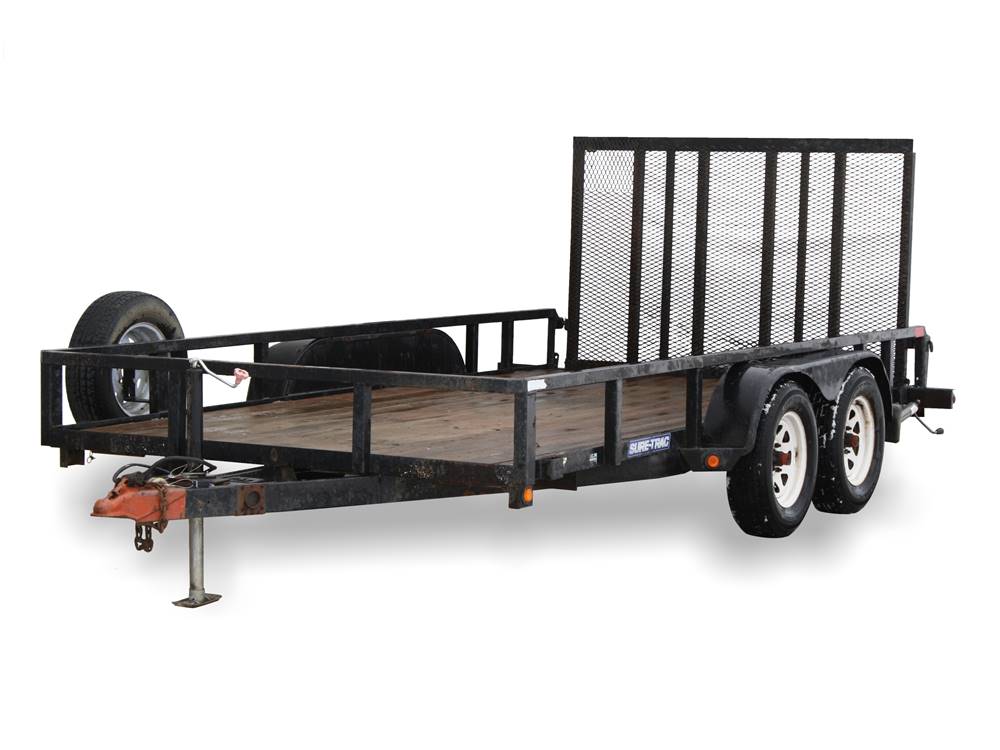

  • Trailer has full width fold down ramp.

Specifications

Height with ROPS in. (mm) 84.4 in | 2143.76 mm
Wheelbase in. (mm) 52.8 in | 1341.12 mm
Ground clearance (front axle) in. (mm) 8.7 in | 220.98 mm
Turning radius (w/o brake) in. (m) 7.2 ft | 2.19 m
Tractor weight (w/ROPS) 1345.05 lbs | 610 kg
Length with 3-point hitch 92.1 in | 2339.34 mm
Width in. (mm) 44 in | 1117.6 mm
Bucket cylinder digging force lbs. (N) 1936 lb | 8610
Dipperstick cylinder digging force lbs. (N) 1171 lb | 5209
Loading height ft.(m) 5 ft | 1.52 m
Digging depth (Backhoe) ft.(m) 6.1 ft | 1.86 m
Swing pivot to rear axle center line ft.(m) 28.6 ft | 8.72 m
Reach from swing pivot ft.(m) 8.7 ft | 2.65 m
Bucket rotation degrees 180
Swing arc degrees 140
Angle of departure degrees 20.1
Max. lift height (to bucket pivot pin) in.(mm) 71.3 in | 1811.02 mm
Dumping clearance in.(mm) 52.4 in | 1330.96 mm
Dumping reach at max. lift height in.(mm) 26 in | 660.4 mm
Reach with bucket on ground in.(mm) 54.7 in | 1389.38 mm
Bucket rollback angle degrees 29
Digging depth Tractor Bucket in.(mm) 4.7 in | 119.38 mm
Bucket width in.(mm) 48 in | 1219.2 mm
Lift capacity (500mm fwd, max. height) lbs. (kg) 518.18 lbs | 235 kg
Lift capacity (pivot pin, max. height) lbs. (kg) 992 lbs | 449.89 kg
Breakout force (500mm fwd) lbs. (N) 3.5 lb | 2.7
Raising time / lowering time (w/o load) second 2.4 / 1.7
Bucket rollback time / dumping time second 750 (340)
Tank Capacity 6.6 gal (Imp) | 30 L
Cargo Weight 5000 lbs | 2267.57 kg
GVW 7000 lbs | 3174.6 kg
Axles x2 3500 lbs | 1587.3 kg
Measurement Between Fenders 81 in | 2057.4 mm
Deck Length 14 ft | 4.27 m
Hitch Size 2-5/16"
Plug Type 7 blade RV
Trailer |
