3.5 Ton Tracked Zero Tail Mini Excavator Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU EXC-220
4 Hours $240
Daily $300
Weekend* $390
Week $1,200
Month $3,600

comes with thumb, 24" toothed bucket, 36" smooth bucket

Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit at $37.50 per hour.

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

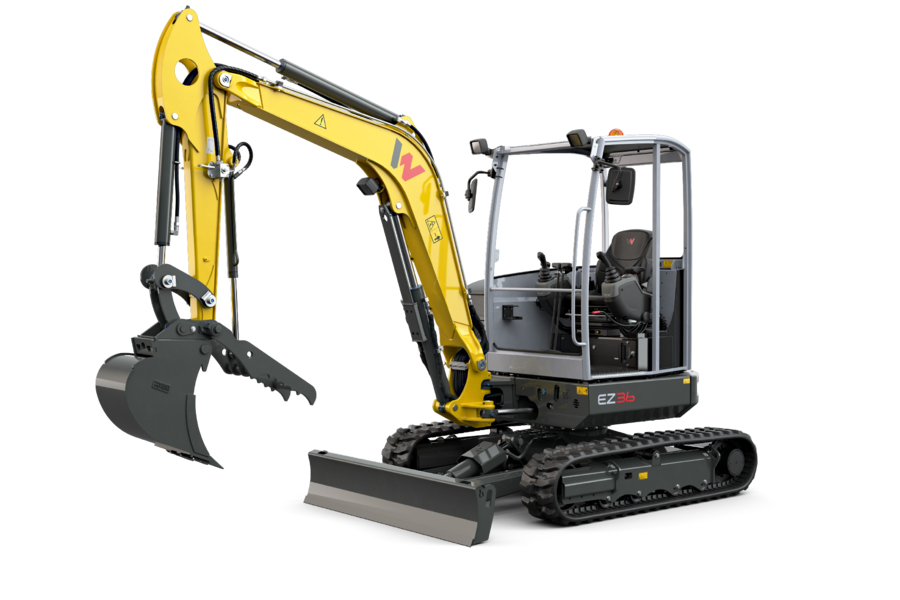

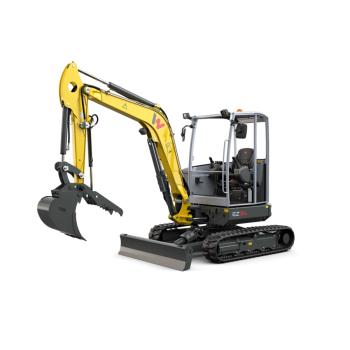

Wacker EZ36

  • Get in and start working – with the EZ36, performance meets maximum efficiency. This zero tail excavator is ideal if compact dimensions are needed. Minimal rear overhang makes working along walls and other obstacles an easy task. The machine features intuitive operation using a joystick, display and jog dial, as well as a comfortable working environment. This leaves the operator in full control of the application.
  • HVAC cab
  • ISO/SAE change over valve
  • Hydraulic quick coupler

Specifications

Superstructure turning speed 9.5 1/min
Travel speed 2.9 mph / 4.7 km/h
Break Out Force Bucket 35 kN
Break Out Force Lift Arm 21.1 kN
Length 216.9" / 5508 mm
Operating weight (min.-max.) 8,196.8 - 10,901.9 lb / 3,718 - 4,945 kg
Digging depth (max.) 137.7" / 3,497 mm
Width 68.9" / 1,750 mm
Height 106.7" / 2,711 mm
Cylinder 3
Cylinder capacity 100.2 cu in / 1,642 cc
Effective power 24.4 hp / 18.2 kW
Nominal Engine speed 2,400 1/min
Battery capacity (nom. value) 71 Ah
Engine type Diesel engine
Exhaust-gas limit EU Stage V
Manufacturer Yanmar
Engine designation 3TNV88
Operating pressure 3,480 psi / 240 bar
Flow rate max. 31.7 gal/mi / 120 l/min
Operating pressure slewing gear 195 bar
Hydraulikpump Axial piston and 2 gear pumps
Cooling fluid volume 5.3 qt US / 5 l
Hydraulic fluid volume 65 qt US / 61.5 l
Shipping weight 7,780.1 lb
Drive unit Axialpistonmotor with RGU
Height with cab 101.3 inches / 2573 mm
Height of dozer blade 14.1 inches / 357 mm
Total height with rotating beacon 106.7 inches / 2711 mm
Width of cab 38.6 inches / 980 mm
Width travel gear 68.9 inches / 1750 mm
Width of dozer blade 68.9 inches / 1750 mm
Transport length 216.1 inches / 5489 mm
Digging depth max., short shovel arm 124.9 inches / 3172 mm
Digging depth max., long shovel arm 134.7 inches / 3422 mm
Piercing depth max., short shovel arm 80.6 inches / 2048 mm
Piercing depth max., long shovel arm 90.0 inches / 2285 mm
Piercing height max., short shovel arm 197.0 inches / 5004 mm
Piercing height max., long shovel arm 203.0 inches / 5157 mm
Dumping height max., short shovel arm 134.3 inches / 3411 mm
Dumping height max., long shovel arm 140.3 inches / 3564 mm
Digging radius max., short shovel arm 207.5 inches / 5270 mm
Digging radius max., long shovel arm 218.3 inches / 5546 mm
Max. reach at ground level (short shovel arm) 211.7 inches / 5378 mm
Max. reach at ground level (long shovel arm) 221.6 inches / 5629 mm
Tail swing radius 36.7 inches / 933 mm
Boom offset max. (to center of bucket right side) 26.8 inches / 680 mm
Boom offset max. (to center of bucket left side) 25.6 inches / 650 mm
Stacking height max. (dozer blade above surface) 15.5 inches / 393 mm
Digging depth max. (dozer blade below surface) 19.9 inches / 505 mm
Length travel drive 81.2 inches / 2062 mm
Max. swivel angle (arm system to the left) 10.7 inches / 271 mm
Max. swivel angle (arm system to the right) 15.4 inches / 390 mm
Boom swing radius right 63.3 inches / 1607 mm
Boom swing radius left 65 °
Max. swivel angle (arm system to the right) 57 °

User Manuals

User Manual
