6.5 Ton Tracked Conventional Excavator Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU EXC-230
4 Hours $320
Daily $400
Weekend* $520
Week $1,600
Month $4,800

comes with thumb, 30" toothed bucket, 48" smooth bucket

Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit at $50.00 per hour.

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

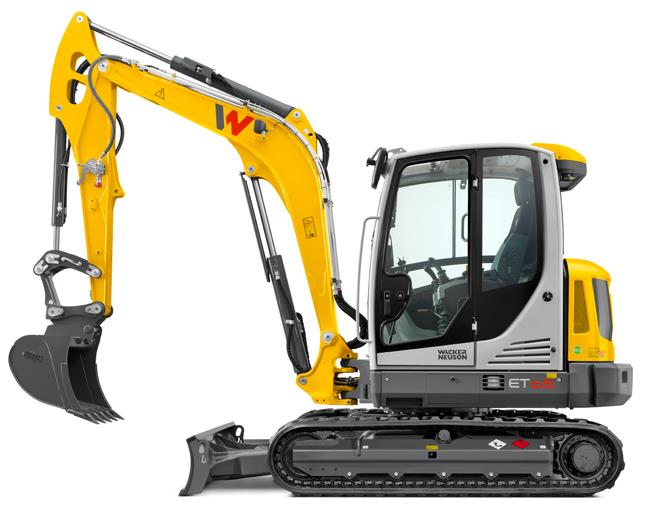

Wacker ET65

  • The ET65 is an excavator that users want. A high-performance machine that surprises with its compact design and maneuverability. The strong excavation performance thanks to high digging forces and the powerful engine are additional plus points that make the excavator an all-rounder on the construction site.
  • HVAC cab
  • ISO/SAE change over valve
  • Hydraulic quick coupler

Specifications

Superstructure turning speed 9 1/min
Travel speed 3.2 mph / 5.2 km/h
Break Out Force Bucket 11,397.8 lbf / 50.7 kN
Break Out Force Lift Arm 6,924.1 lbf / 30.8 kN
Length 241.6" / 6,137 mm
Operating weight (min.-max.) 13,399.7 - 16,221.6 lb / 6,078 - 7,358 kg
Digging depth (max.) 164.7" / 4,184 mm
Width 76.8" / 1,950 mm
Height 97.6" / 2,478 mm
Cylinder 4
Cylinder capacity 135.2 cu in / 2,216 cc
Effective power 56.3 hp / 42 kW
Nominal Engine speed 2,000 1/min
Battery capacity (nom. value) 100 Ah
Engine type Turbodieselengine
Exhaust-gas limit EU Stage V
Manufacturer Perkins
Engine designation 404J - E22T
Operating pressure 3,480 psi / 240 bar
Flow rate 38 gal/mi / 144 l/min
Flow rate max. 38 gal/mi / 144 l/min
Tank capacity 24.3 gal US / 92 l
Operating pressure slewing gear 215 bar
Hydraulikpump Variable displacement and gear pump
Operating pressure 3,480 psi / 240 bar
Shipping weight 12,800 lb / 5,806 kg
Height with cab 97.6 inches / 2478 mm
Height of dozer blade 16.7 inches / 423 mm
Total height with rotating beacon 104.5 inches / 2654 mm
Width of upper carriage 74.9 inches / 1902 mm
Width of cab 39.4 inches / 1000 mm
Width travel gear 76.8 inches / 1950 mm
Width of dozer blade 76.8 inches / 1950 mm
Transport length short shovel arm 238.8 inches / 6065 mm
Transport length long shovel arm 243.9 inches / 6194 mm
Digging depth max., short shovel arm 153.3 inches / 3893 mm
Digging depth max., long shovel arm 165.1 inches / 4193 mm
Piercing depth max., short shovel arm 108.8 inches / 2764 mm
Piercing depth max., long shovel arm 119.5 inches / 3036 mm
Piercing height max., short shovel arm 257.4 inches / 6537 mm
Piercing height max., long shovel arm 266.5 inches / 6770 mm
Dumping height max., short shovel arm 183.6 inches / 4664 mm
Dumping height max., long shovel arm 192.8 inches / 4898 mm
Digging radius max., short shovel arm 259.4 inches / 6590 mm
Digging radius max., long shovel arm 270.7 inches / 6877 mm
Max. reach at ground level (short shovel arm) 254.9 inches / 6475 mm
Max. reach at ground level (long shovel arm) 266.6 inches / 6772 mm
Tail swing radius 53.7 inches / 1363 mm
Tail swing radius with tail weight 58.3 inches / 1481 mm
Boom offset max. (to center of bucket right side) 30.2 inches / 766 mm
Boom offset max. (to center of bucket left side) 19.4 inches / 492 mm
Stacking height max. (dozer blade above surface) 15.9 inches / 403 mm
Digging depth max. (dozer blade below surface) 16.8 inches / 427 mm
Length travel drive 99.1 inches / 2516 mm
Max. swivel angle (arm system to the left) 65 °
Max. swivel angle (arm system to the right) 57 °
Track width 15.7 inches / 400 mm
Boom swing radius center 64.1 inches / 3159 mm
Boom swing radius right 59.8 inches / 3097 mm
Boom swing radius left 54.0 inches / 2732 mm

User Manuals

User Manual
