Plate Tamper 1000 lb Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU TAM-300
4 Hours $136
Daily $170
Weekend* $221
Week $680
Month $1,700

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

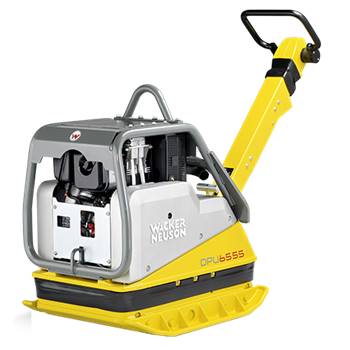

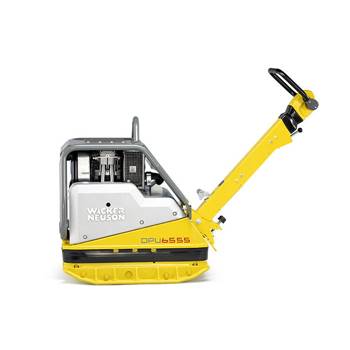

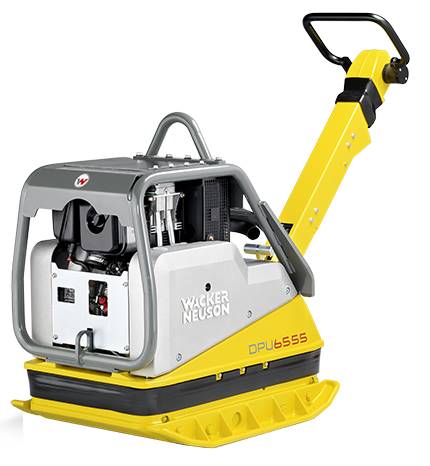

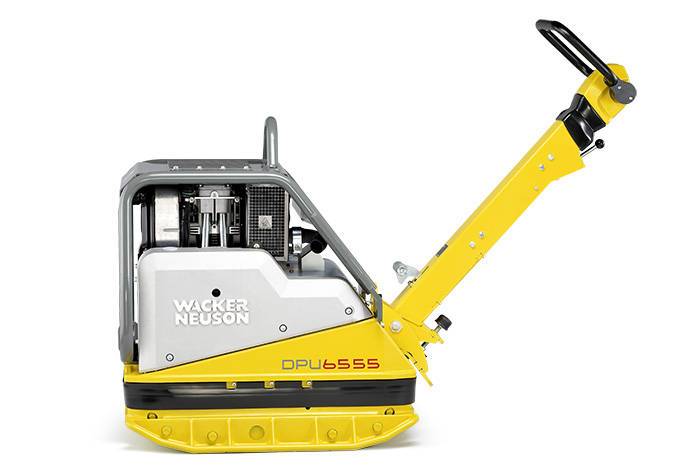

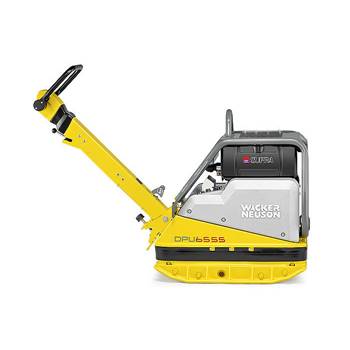

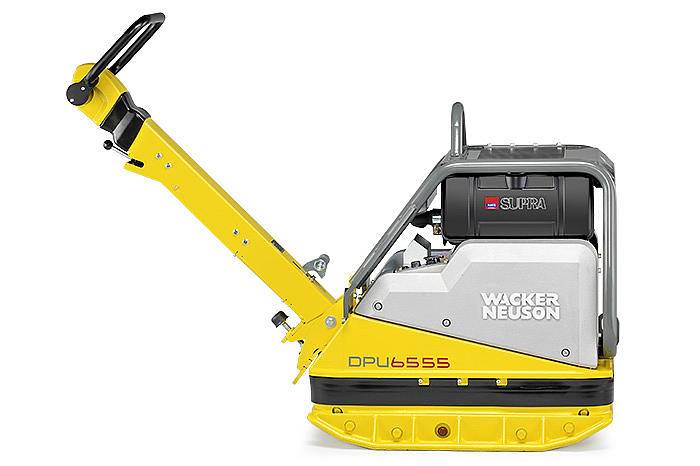

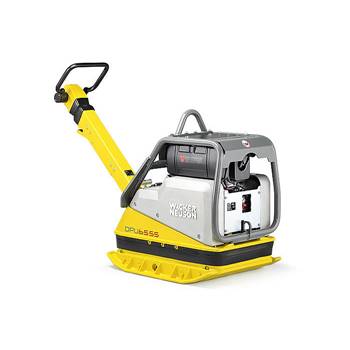

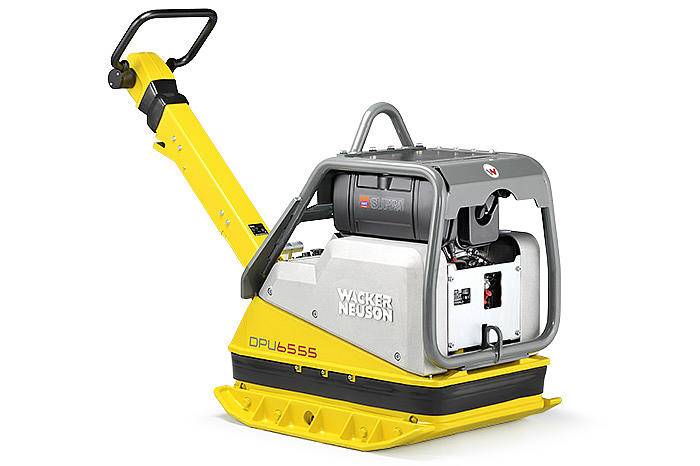

Wacker DPU6055 / DPU6555

  • A reversible plate for the toughest compaction jobs.
  • The DPU 6055 offers the best compaction of various types of soil. It shows its true strength when working on semi-cohesive soils in particular.
  • This reversible plate provides optimum performance along with a variable forward and reverse speed of up to 92 feet per minute (28 meters per minute).
  • Plus, the dual shaft exciter technology provides the maximum possible compaction depth in most types of soil.

Specifications

Operating weight  lb 1091
Centrifugal force  lbf 14612
Base plate size (W?x?L) in 21.7 x 35
Base plate thickness  in 0.5
Height (ground clearance) in 33.6
Operating width (with extension plates) in 28
Frequency  Hz 69
Hand-arm vibrations  ft/s² 4.3
Advance travel max. (dependent on soil and environmental influences) ft/min 91.8
Surface capacity max. (dependent on soil and environmental influences) ft²/h 12917
Transport height  in 59.9
Transport length  in 41.7
Transport width  in 30.7
Shipping weight  lb 1105
Engine / Motor type  Air-cooled, single-cylinder, four-cycle diesel engine
Engine / Motor manufacturer  Hatz
Engine / Motor  1D81S
Displacement  in³ 40.7
Engine performance (rated power) (IFN DIN ISO 3046) kW 9.6
at rpm  rpm 2800
Operating performance (DIN ISO 3046) kW 6.8
at rpm  rpm 3010
Fuel consumption  US gal/h 0.5
Tank capacity (fuel) Liters 5.9
Power transmission  From the drive motor via centrifugal clutch and V-belt directly to the exciter.
Fuel type  Diesel

User Manuals

User Manual
