Plate Tamper 1700 lb Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU TAM-330
4 Hours $156
Daily $195
Weekend* $254
Week $760
Month $2,106

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

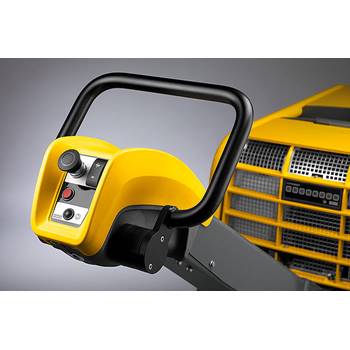

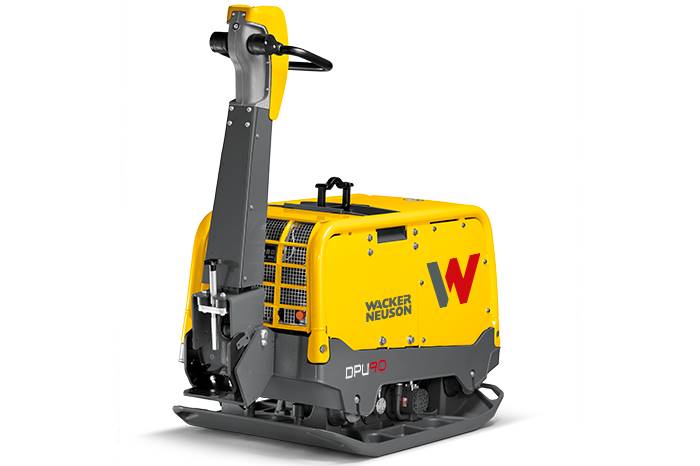

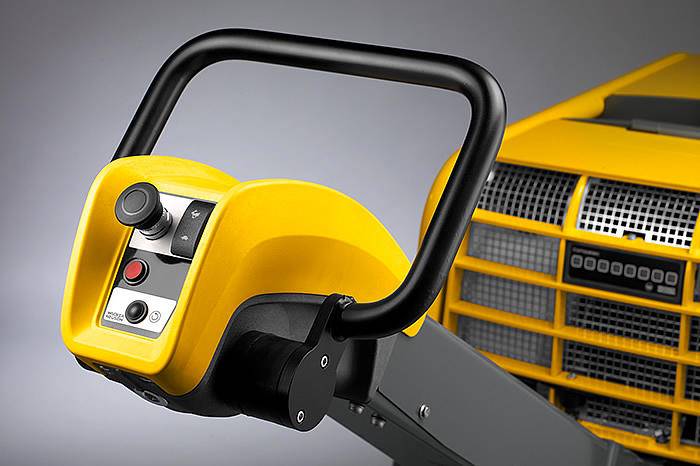

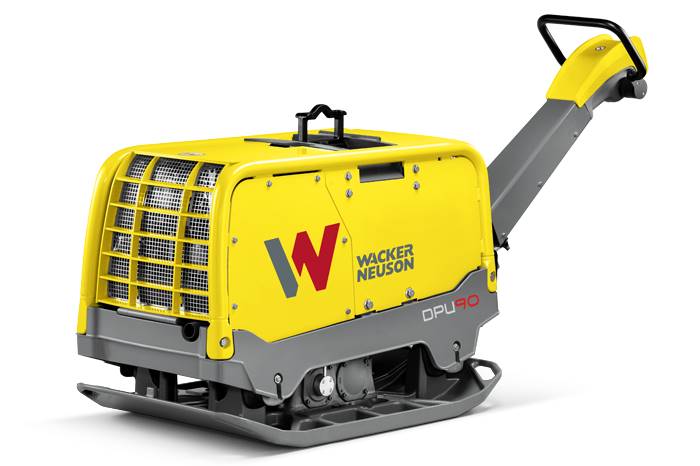

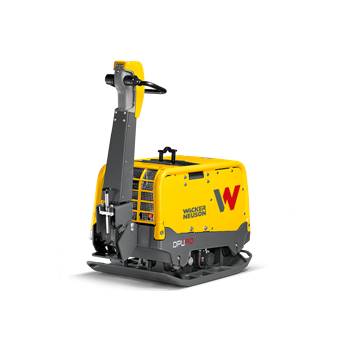

Wacker DPU90

  • The DPU90 offers the power and performance needed for the toughest compaction jobs. Designed for compaction of granular and mixed soils, the DPU90 offers over 20,000 pounds of centrifugal force, fast forward travel speed, high frequency rate and a rugged design to meet the needs of a variety of compaction jobs. Besides outstanding performance, this reversible plate is designed for optimum serviceability making routine maintenance quick and easy.

Specifications

Operating weight 1,700 lb
Centrifugal force 20,233 lbf
Base plate width 30 in
Base plate length 47 in
Base plate thickness 0.6 in
Height (ground clearance) 33 in
Operating width 30 in
Frequency 63 Hz
Hand-arm vibrations < 8.2 ft/s²
Advance travel max. (dependent on soil and environmental influences) 98 ft/min
Surface capacity max. (dependent on soil and environmental influences) 14,919 ft²/h
Gradeability 34 %
Transport height 65 in
Transport length 59 in
Transport width 33 in
Shipping weight 1,711 lb
Engine / Motor type Water-cooled 2-cylinder 4-stroke diesel engine
Engine / Motor manufacturer Kohler
Engine / Motor KDW702-3350 US
Displacement 42 in³
Engine performance (rated power) (DIN ISO 3046 IFN) 14.3 hp
at rpm 3,350 rpm
Engine performance max. 11.7 kW
at rpm 3,600 rpm
Operating performance (DIN ISO 3046 IFN) 13.1 hp
at rpm 3,350 rpm
Fuel consumption 0.7 US gal/h
Fuel tank capacity 1.9 US gal
Permissible tilt 25 °
Power transmission Hydrostatic
Fuel type Diesel
CO2 (NRSC) * 905 g/kW-hr

User Manuals

User Manual
