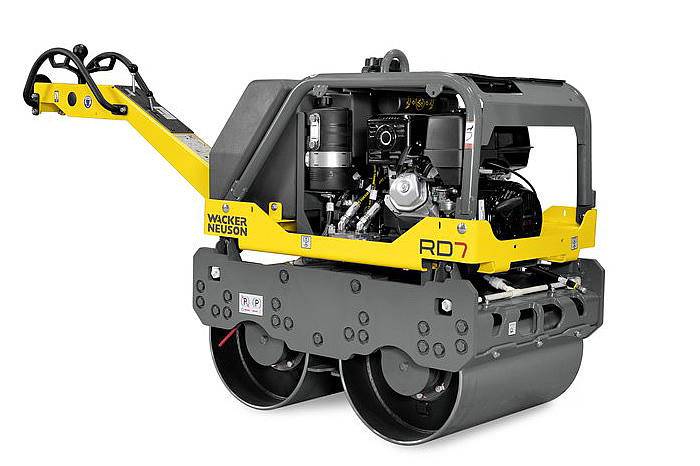

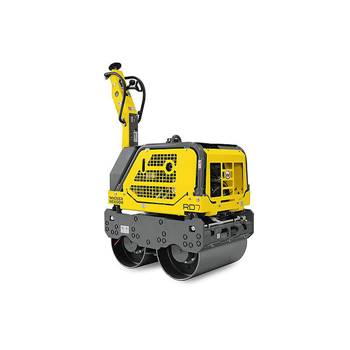

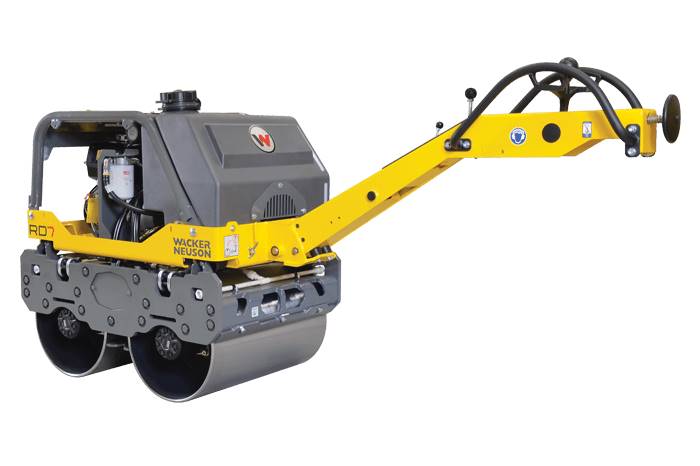

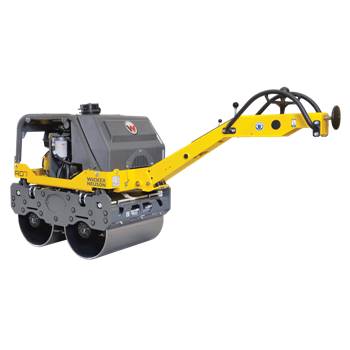

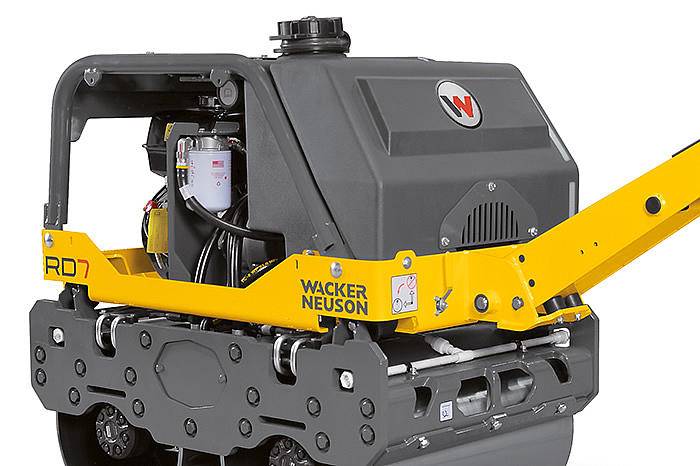

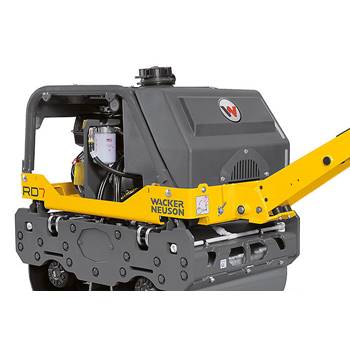

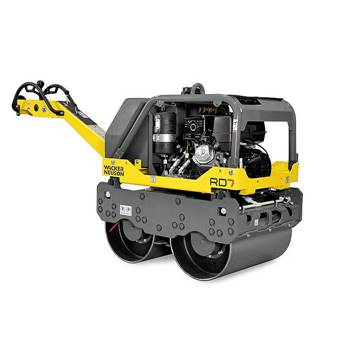

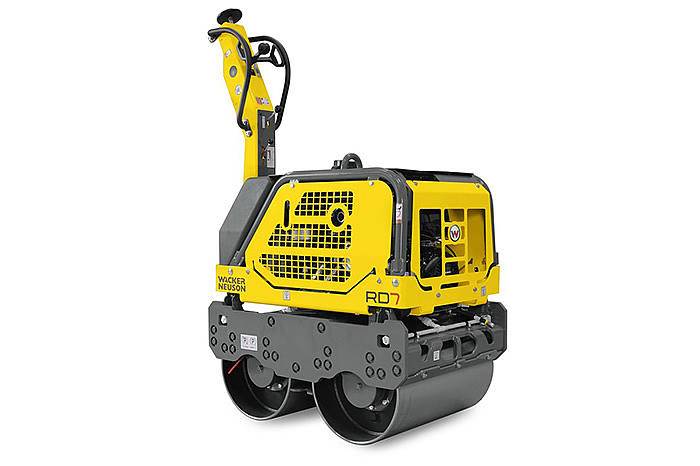

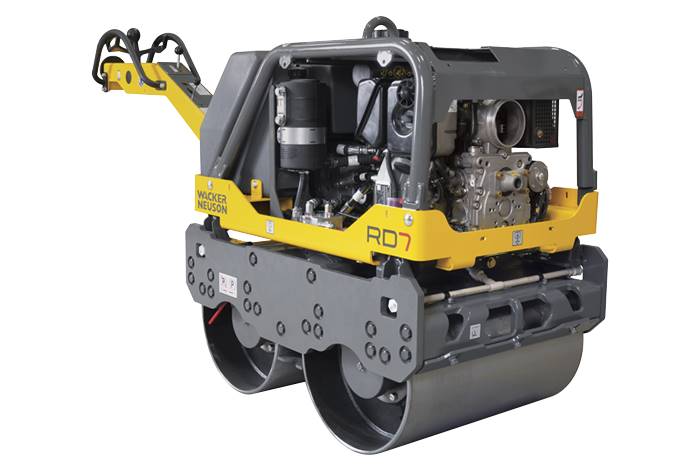

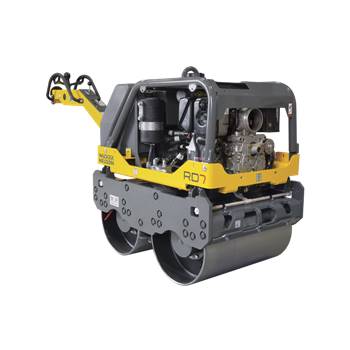

Roller, Double Drum 25.6" - Wacker Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU ROL-200
4 Hours $128
Daily $160
Weekend* $208
Week $640
Month $1,920

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

Wacker / RD7H

  • Patent-pending handle design offers multiple gripping points for easier control and turning of the unit, plus a center handle allows the operator fine control finishing asphalt
  • Open frame design provides for fast cleaning with a pressure washer and easy to access components simplifies service significantly reducing downtime between uses
  • Large water tank with easy access cap and quick view of water level provide for longer running time between refills
  • Unique foot operated handle lock allows for easy tilting of the handle for storage
  • Easy to reach throttle and low/high exciter force controls conveniently located on the shock mounted low vibration handle increases operator comfort

Specifications

Operating weight (water tank half full) 1612.74 lbs | 731.4 kg
L x W x H (guide handle in operating position) 93.1" x 27.5" x 45.7" [2366 x 698 x 1162 mm]
Drum width 26.5 in | 673.1 mm
Drum diameter 16.5 in | 419.1 mm
Side clearance (right & left) 1 in | 25.4 mm
Curb clearance (right/left) 8.2 in | 208.28 mm
Centrifugal force high 4,998 lbf [22.2 kN]
Centrifugal force low 2,935 lbf [13.1 kN]
Frequency high Vpm 3,725
Frequency low Vpm 2,850
Amplitude drum 0.029
Total force Applied - high 6,577 lbf
Total force Applied - low lbf 4,514 lbf
Travel speed forward max. 2.8 mph | 4.51 km/h
Travel speed reverse max. 1.6 mph | 2.57 km/h
Surface capacity max. ft²/h 31,108
Gradeability with vibration % 40
Gradeability without vibration % 45
Engine / Motor type Air-cooled single-cylinder 4-stroke diesel engine
Engine / Motor manufacturer Hatz 1D42S
Displacement in³ 27.2
RPM / speed rpm 2,600
Tank capacity fuel 1.1 gal (Imp) | 5 L
Tank capacity water 13.2 gal (Imp) | 60 L
