Plate Tamper 500 lb

Plate Tamper 500 lb BPU3750
4 Hours$80
Weekend (Sat/Sun)$120

A rental product may not be available exactly as shown or listed. All prices, descriptions, and specifications subject to change without notice.

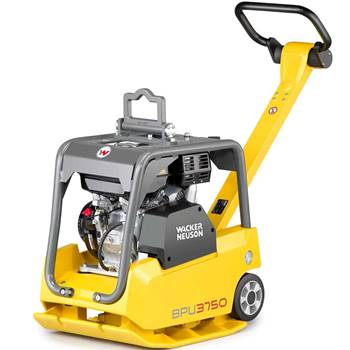

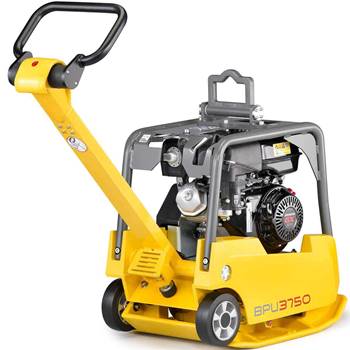

Wacker BPU3750

These low profile units feature standard extension plates providing adjustable operating widths.
Variable forward and reverse travel for flexible applications: perfect for compaction in trenches and large areas as well as for vibration of interlocking medium-sized paving stones.

BPU 3750A

Operating weight  lb529

Centrifugal force  lbf8318

Base plate thickness  in0.4

Height (without guide handle) in29.4

Operating height Adjustable Guide Handle - Down in36.8

Operating height Adjustable Guide Handle - Up in51.3

Operating width  in19.7

Frequency  Hz90

Advance travel (depending on soil and environmental factors) ft/min82

Surface capacity (depending on soil and environmental factors) ft²/h8073

Gradeability (depending on soil and environmental factors) %30

Engine / Motor type Air-Cooled, Single Cylinder, 4-Cycle Engine

Engine / Motor manufacturer Honda

Engine / Motor GX270

Displacement  in³16.5

Operating performance (DIN ISO 3046) hp8

at rpm  rpm3600

Fuel consumption  US gal/h0.3

Tank capacity Fuel US qt5.6

Power transmission From Drive Engine via Centrifugal Clutch and V-Belt Directly to Exciter

Fuel type Gasoline
