Plate Tamper 350 lb

Plate Tamper 350 lb BPU3050 BPU3050
SKU102-0017
4 Hours$68
Daily$85
Weekend (Sat/Sun)$102
Weekly$340
Monthly$1,020

A rental product may not be available exactly as shown or listed. All prices, descriptions, and specifications subject to change without notice.

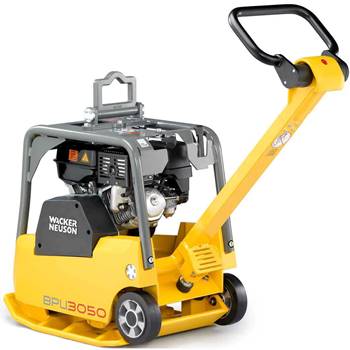

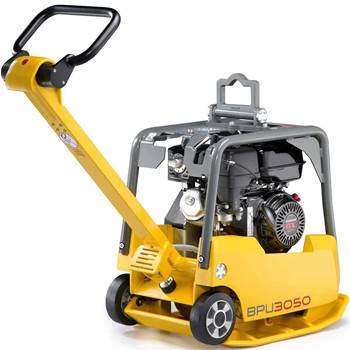

Wacker BPU3050

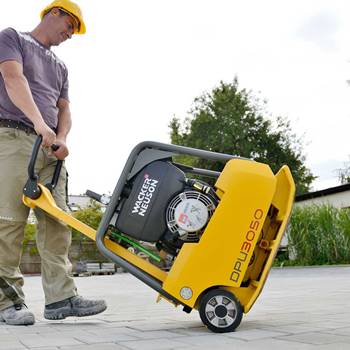

These reversible plates are ideal for the compaction of interlocking paving stones, trenches, landscape and municipal applications. They come with a unique, integrated wheel set that provides easy one-person movement around the job or shop.


BPU 3050A

Operating weight  lb366

Centrifugal force  lbf6750

Base plate thickness  in0.4

Height (without guide handle) in27.5

Operating height Adjustable guide handle - Down in31.5

Operating height Adjustable guide handle - Up in45

Operating width  in19.7

Frequency  Hz90

Advance travel (depending on soil & environmental factors) ft/min68.9

Surface capacity (depending on soil & environmental factors) ft²/h6781

Gradeability (depending on soil & environmental factors) %30

Engine / Motor type Air-Cooled, Single Cylinder 4-cycle engine

Engine / Motor manufacturer Honda

Engine / Motor GX270

Displacement  in³16.47

Operating performance (DIN ISO 3046) hp9

at rpm  rpm3600

Fuel consumption  US gal/h3

Tank capacity Fuel Liters5.0

Power transmission From drive motor via centrifugal clutch and V-belt direct to exciter.

Fuel type Gasoline
