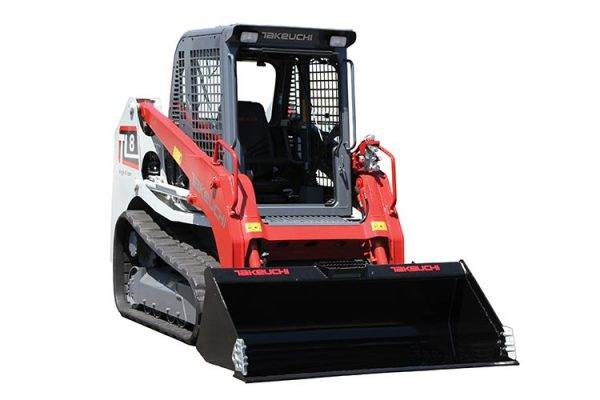

Tracked Skid Steer - Takeuchi Rental
A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.
| SKU | SKI-225 |
| 4 Hours | $288 |
| Daily | $360 |
| Weekend* | $468 |
| Week | $1,440 |
| Month | $3,900 |
|
Rental includes bucket or pallet fork attachment. $20 per day each extra bucket. 20% off trailer rental! |
|
Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit at $45.00 per hour.
* Weekend Rate = Friday pickup noon to close and return Monday 8 AM
Contractor Rates are available, please contact one of our staff for more information.
Call to Book Request RentalTakeuchi TL-8
- Rubber tracks combine the capabilities of a track loader with the versatility of operation on improved surfaces
- Pilot operated joystick
- controls provide precise, fingertip control of loader and travel functions
- USES 72" - 84" BUCKETS, SWEEPER, (SNOW BUCKETS 80" OR 90" )
- PALLET FORKS (104-0221)
- AUGER DRIVE (101-0251)
Specifications
| Operating Weight - Canopy | 8,455 lb / (3,835 kg) |
| Operating Weight - Cab | 8,631 lb / (3,915 kg) |
| Tipping Load | 6,020 lb / (2,731 kg) |
| Rated Operating Capacity, SAE J818* | 2,105 lb / (955 kg) |
| ROC w/ Optional Counter Weight | 2,323 lb / (1,054 kg) |
| Operating Load at 50% of Tipping Load | 3,010 lb / (1,365 kg) |
| Bucket Breakout Force | 6,856 lb / (3,110 kg) |
| Lift Arm Breakout Force | 6,709 lb / (3,100 kg) |
| Traction Force | 9,127 lb / (4,140 kg) |
| Ground Pressure - 15.7" Track | 4.4 psi / (30.2 kPa) |
| Ground Pressure - 12.6" Track | 5.4 psi / (37.2 kPa) |
| Travel Speed - Low | 4.6 mph / (7.4 km/hr) |
| Travel Speed - High | 6.8 mph / (11.0 km/hr) |
| Auxiliary Flow - Primary Circuit | 18.4 gpm / (69.5 Lpm) |
| Auxiliary Flow - High Flow (optional) | 33.0 gpm / (124.9 Lpm) |
| Hydraulic System Pressure | 3,046 psi / (21.0 MPa) |
| Make / Model | Kubota / V3307-CR-Turbo |
| Engine Displacement | 203 cu in / (3.3 L) |
| Horsepower @ 2,600 rpm | 74.3 hp / (55.4 kW) |
| Maximum Torque @ 1,500 rpm | 192 ft-lb / (260 Nm) |
| Engine Lubrication | 11.2 qt / (11.8 L) |
| Cooling System | 14.8 qt / (14.0 L) |
| Fuel Tank Capacity | 19.8 gal / (75.0 L) |
| Fuel Consumption (65% of Full Load) | 2.69 gal/hr / (10.2 L /hr) |
| Hydraulic Reservoir Capacity | 10.36 gal / (39.0 L) |
| Hydraulic System Capacity | 15.3 gal / (58.0 L) |
| Max. Lift Height to Bucket Pin | 9 ft 11 in / (3,030 mm) |
| Mid-Height Reach | 4 ft 6.3 in / (1,412 mm) |
| Overall Operating Height | 12 ft 9.7 in / (3,905 mm) |
| Dump Height Fully Raised | 7 ft 9.0 in / (2,370 mm) |
| Dump Reach Fully Raised | 2 ft 4.7 in / (730 mm) |
| Dump Angle | 38.5° |
| Rollback Angle | 30° |
| Track Ground Contact Length | 4 ft 6.7 in / (1,390 mm) |
| Machine Length | 8 ft 11.8 in / (2,740 mm) |
| Transport Length | 11 ft 3.0 in / (3,400 mm) |
| Transport Height | 6 ft 11.9 in / (2,130 mm) |
| Departure Angle | 30° |
| Clearance Circle with Bucket | 6 ft 10.0 in / (2,080 mm) |
| Clearance Circle without Bucket | 4 ft 6.0 in / (1,375 mm) |
| Clearance Circle Rear | 5 ft 2.4 in / (1,585 mm) |
| Track Width | 15.7 in / (400 mm) |
| Ground Clearance | 12.1 in / (310 mm) |
| Overall Width without Bucket | 5 ft 5.4 in / (1,660 mm) |
