Skid Steer JCB 135 Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU SKI-300
4 Hours $166
Daily $200
Weekend* $260
Week $800
Month $2,400

Rental includes bucket or pallet fork attachment. $20 per day each extra bucket. 20% off trailer rental!

Daily Rates are for 8 hours runtime. Weekend Rates are for 12 hours runtime. Hourly rate charged over limit at $40.00 per hour.

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

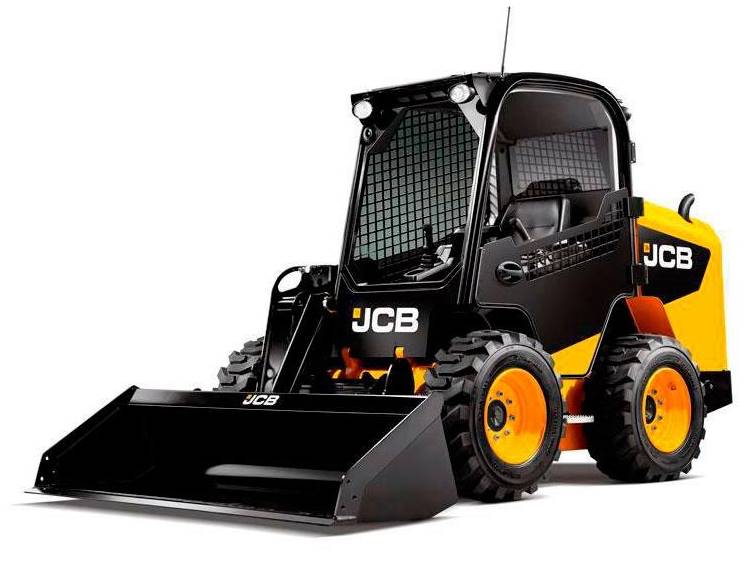

JCB 135

  • The small platform JCB radial lift 135 skid steer is a side door entry unit with a 1,350lb (612kg) rated operating capacity. The industry's safest skid steer.

Specifications

Length w/Bucket 11 ft. 5 in. (3.49 m)
Height 6 ft. 6 in. (1.98 m)
Width 4 ft. 11 in. (1.52 m)
Bucket Width 5 ft. (1.52 m)
Bucket Capacity 0.47 cu. yd. (0.36 m²)
Weight 6,067 lbs. (2,752 kg)
Wheelbase 3 ft. 6 in. (1.07 m)
Ground Clearance 8.3 in. (210 mm)
Bucket Corner 6 ft. 10 in. (2.09 m)
Quick Hitch 3 ft. 7 in. (1.1 m)
Rear Chassis 5 ft. 5 in. (1.65 m)
Engine Model 404D-22
Gross Horsepower 47.9 hp (35.7 kW)
Torque 105 ft. lbs. (143 Nm)
Travel Speed - Forward 7.5 mph (12 km/h)
Opt Pump Flow 18.5 gpm (70 lpm)
System Pressure 3,335 psi (230 bar)
Rated Operating Capacity 1,350 lbs. (612.3 kg)
Tipping Load 2,989 lbs. (1,356 kg)
Height to Bucket Pin 9 ft. 10 in. (3 m)
Reach @ Max. Height 3 ft. (0.91 m)
Angle Departure 25°
Dump Height 7 ft. 5 in. (2.26 m)
Maximum Reach 3 ft. 3 in. (1 m)
Dig Depth 4 in. (10 mm)
Rollback @ Ground 30°
Dump Angle 42°
Bucket Breakout Force 4,012 lbs. (1,820 kg)
Tank Capacity 50 liters
