Light Tower - Wide Rental

A rental product may not be available exactly as shown or listed. You may receive a rental product of similar specifications.
All prices subject to change without notice.

SKU LIG-115
4 Hours $140
Daily $175
Weekend* $210
Week $700
Month $2,100

* Weekend Rate = Friday pickup noon to close and return Monday 8 AM

Contractor Rates are available, please contact one of our staff for more information.

Call to Book Request Rental

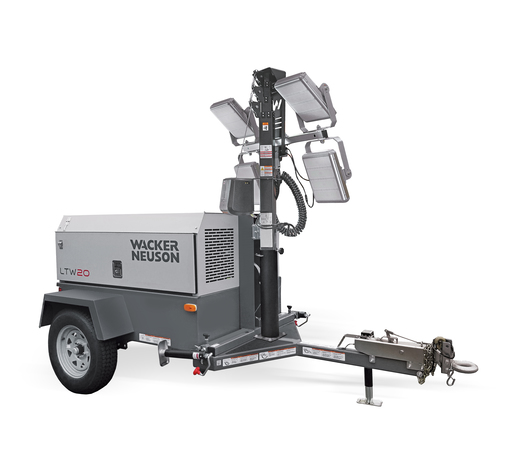

Wacker LTW20Z1 LED

  • The LTW wide body vertical mast light towers combine superior job site lighting with power output up to 20 kW. Equipped with 300 Watt LED Lamps.

Specifications

Engine Isuzu 40.23 hp | 30 kW
Engine type Diesel
Running time at 100% 34.8 hrs
Tank capacity 47.47 gal (Imp) | 215.8 L
Width 75.59 in | 1920 mm
Height 100 in | 2540 mm
Length 103.54 in | 2630 mm
Weight 3450.83 lbs | 1565 kg
Nominal current 155,00 A, 78,00 A
Phase 1 ~
Power factor (cos #) 1,00 cos φ,
Nominal voltage 20 V, 240 V, 240 V, 120 V
Nominal power [S] 20,90 kVA
Nominal frequency 60 Hz
Nominal power [P] 18,60 kW
Main Circuit Breaker Rating 80 A
Bulb power 1.100 W
Sound level LpA 71,2 dB(A)
NEMA Beam Spread Type 6
Coverage area 504 m2
Illuminance 54 Lux

User Manuals

User Manual
